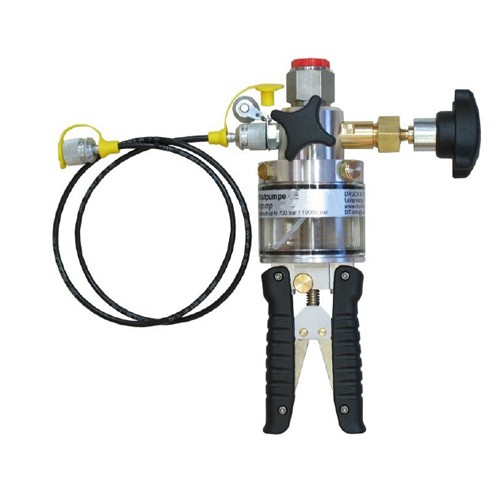

Verth P700 Hydraulic Pressure Test Pump

Verth P700 hydraulic pump generates up to 700 bar, offering precise, portable pressure testing and calibration for mechanical and electronic gauges in field or lab use.

The Verth P700 Pressure Test Pump is a portable hydraulic test device designed for calibrating and adjusting mechanical and electronic pressure measurement instruments. Capable of generating test pressures up to 700 bar (10,152 psi), it is ideal for mobile use in the field or laboratory.

During testing, the reference gauge and the device under test are connected to the same pressure line, allowing direct comparison of measurements. This ensures the accuracy of the tested instrument and allows adjustments if necessary.

Despite its compact size, the P700 delivers precise and stable pressure generation. It features a fine adjustment valve for accurate pressure control. The reference gauge can be mounted on top of the pump, while the test device connects via a 1/4″ BSP female fitting. High-quality materials such as aluminum, brass, ABS, Plexiglas, and NBR provide durability and reliable performance.

The pump operates with manual lever action, and both coarse and fine adjustments can be made for accurate pressure application. It can work with mineral-based hydraulic oil or distilled water as the working medium, and the >200 cm³ fluid reservoir can be refilled during operation.

Key Features:

Pressure Generation: 0…700 bar (0…10,152 psi)
Connections:
- Reference device: 1/2″ BSP female, free rotating, integrated O-ring
- Test device: 1/4″ BSP female, free rotating, integrated O-ring
Materials: Aluminum, Brass, ABS, Plexiglas, NBR
Pressure Source: Manual lever
Coarse Pressure: Adjustable via lever movement
Fine Pressure: Large volume fine adjustment valve
Working Medium: Mineral-based hydraulic oil or distilled water
Fluid Reservoir: >200 cm³, refillable during operation
Dimensions: 270 x 160 x 120 mm (excluding test hose)
Weight: 1.3 kg (excluding test hose)
Order Code: P700
